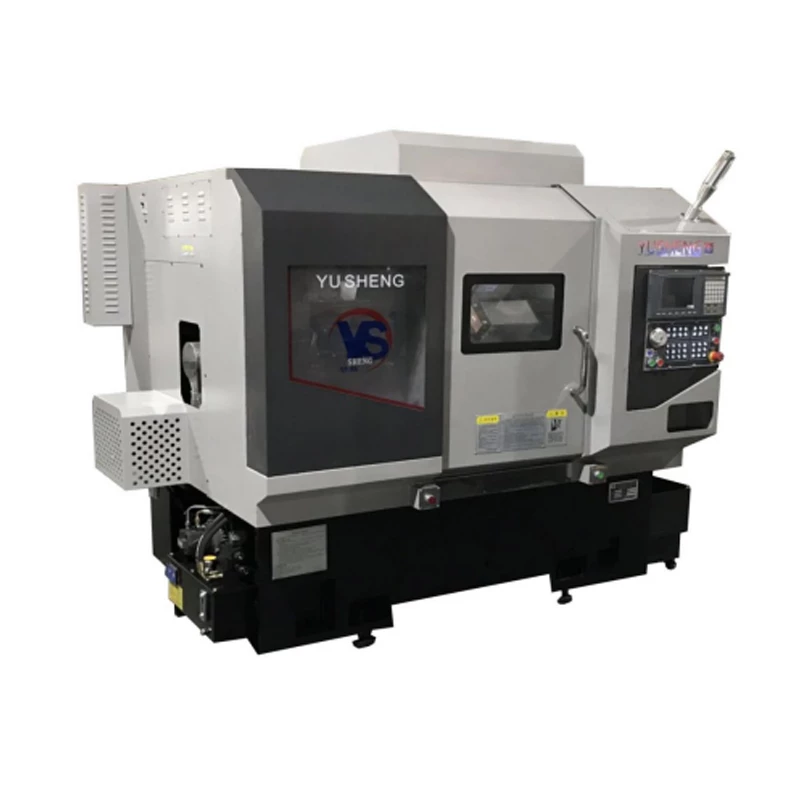

36Y-Axis Powered Turret CNC Lathe

Serial number

Project Content

Description

1

Standard spindle head specifications

A2-4

2

Maximum spindle speed

6000r/min

3

Spindle through hole diameter

Φ46

4

Maximum rod diameter

Φ350

5

Spindle indexing accuracy

Plus or minus 0.01° (360°)

6

Maximum rotation diameter on the bed

Φ350

7

Processing length range (with power head milling cutter length 30) Z axis direction

1mm--180mm

8

Processing length range (millable shape and size of the power head) X-axis zero direction

Positive height 300*negative 10

9

Bed structure

45° inclined bed

10

Sub-plate to spindle center

70mm

11

Maximum travel X axis* (diameter)

900mm

12

Maximum travel Z axis*

230mm

13

Minimum setting unit (X/Z)

0.001mm

14

Repeatability (X/Z)

Plus or minus 0.003mm

15

Roughness (values available)

Ra≤0.4

16

Turret model (optional)

Turret (8-12 stations) + 3*3 Y-axis power head

17

Maximum travel Y axis* (diameter)

370mm

18

Distance between power heads (radius)

50mm

19

Power head milling cutter fixture

ER25

20

Maximum tapping diameter of power head mm (45# steel)

M8
